Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device

Product Details

Place of Origin: Guangzhou, China

Brand Name: EASY-SHENFA

Certification: CE & ISO

Model Number: SF-MP616

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: Negotiable Per Set

Packaging Details: Wooden case

Delivery Time: About 3-4weeks

Payment Terms: TT, LC

Supply Ability: 30-60 sets/Month

Get Best Price
Contact Now
Specifications
High Light:

Irregular Bottles Screen Printing Machine

,

CCD Vision Screen Printing Machine

Usage:
Glass&plastic Bottle Screen Printing
Product Size:
Dia 25 - 100mm H 40 - 250mm
Max Speed:
30-60 Pcs / Min
Air Pressure:
0.6 - 0.8mpa
Usage:
Glass&plastic Bottle Screen Printing
Product Size:
Dia 25 - 100mm H 40 - 250mm
Max Speed:
30-60 Pcs / Min
Air Pressure:
0.6 - 0.8mpa
Description
Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device

Irregular bottles screen printing machine with CCD vision orientation and inspect device

Multi Colors Automatic Screen Printing Hot Stamping Machine for Glass & plastic Bottle industry

New Model Fully Automatic Silk Screen Printer With Visual orientation and inspection device

1-6 colors automatic screen printing machine & hot stamping machine for perfume bottle and industry



Type Screen Printing Machine
Model  SF-MP616
Product Bottles Jars
Product Size Dia 25-100mm H40-250mm
Max Speed  30-60 pcs / min
Air Pressure  0.6-0.8mpa
Power  AC380V 50/60Hz 60Kw
Machine Size  L*W*H 340*450*235cm



This series of equipment can automatically print 1-6 colors at one time,which can be integrated

with silk screen printing / hot-stamping / labeling/digital/pad printing and other functions.

Intelligent processing processing devices,such as camera locating and camera inspection

can be selected. It is suitable for various shapes such as round,flat,cone,triangle,multilateral,etc.,

and graphic printing solutions for the packaging of cosmetics,daily use,food,medical ,rubber,plastic,

glass and other bottle products



1. MP616  1-6 colors screen printing machine

Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 0





2. Loading conveyor belt



Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 1



3. Bottle bottom vision orientation



Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 2



4. Electrostatic dust removal

Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 3





5. Flame treatment device



Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 4



6. Bottle body CCD vision orientation

Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 5





7. Screen printing station by serov motor control

Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 6



8. UV curing device  or LED curing device(optional)

Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 7

9. Unloading belt

Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 8

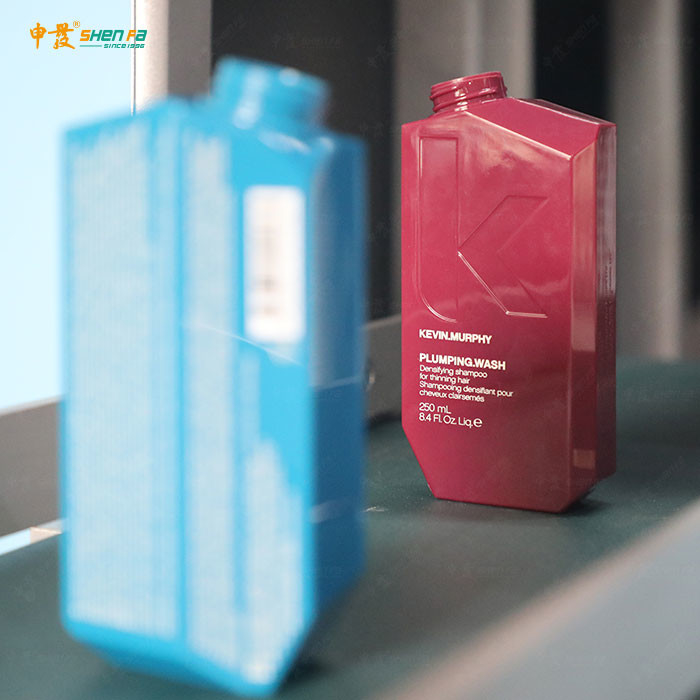

8. Printing samples

Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 9



9. CCD Vision inspection device

Irregular Bottles Screen Printing Machine With CCD Vision Orientation And Inspect Device 10





Company introduction



SHEN FA CORPORATION

We are original manufacturer.

We specialize in Screen Printing Machines, Hot Stamping Machines, Pad Printing Machines,

Labeling Machines, Digital Printers and other print machines. Since 1996. Located in Guangzhou, China.

Print equipments include Full-Automatic, Semi-Automatic, Manual, Multi Color printing machinaries.

Machines can print for Bottles, Plastic Bottles, Glass Bottles, Little Bottles, Cups, Plastic Cups, Glass Cups,

Paper Cups, Bottle Lids, Bottle Caps, Bottle Sealers, Cup Caps, Cup Covers, Tubes, Soft Tubes, Pens,

Lipsticks, Barrels, Cosmetic Box,Chemical Box, Storage Containers, Make up Bottles, and other Round/Flat/

Square Materials.

We aim to do the best quality, best price, and best aftersale support services.

Look forward to do business with you!
