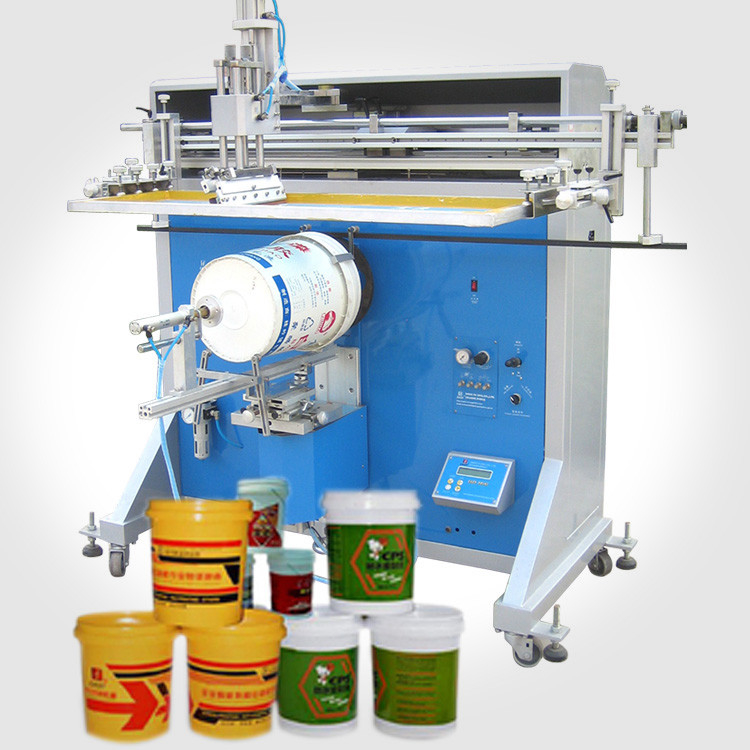

SF-1100 Bucket Semi-Auto Screen Printing Machine

Application Scope:

SF-1100 Screen Printing Machine, which is fit for printing on the big diameter round products such as paint and water buckets etc.

Advantages:
1. Microprocessor controls each function with high automation and easy operation;
2. 5 digit auto counter built in;
3. It has function of cylindrical printing and conical printing;
4. Auto ink scraping and flooding and worktable elevating make operation easy and ensure stable printing quality;
5. printing stroke and speed are adjustable to meet different printing requirements;
6. Auto balanced squeegee ensures equalized printing pressure;
7. Worktable can be adjustable up/down,left/right and rotated slightly. Screen frame can be finely adjusted forward/backward, left/right and up/down. Printing precision is high and adjustment easy;
8. Squeegee can be finely adjusted left/right.Substrate alignment is quick and precise;
9. Safety hood is equipped to meet European safety standard and ensure safety.
10. Pneumatic part of the installation of the German "FESTO" Parts,Separate adjustment speed.

Specifications:
1: Max.printing size:φ330x350mm 
2: Max.Frame Size:1180*380mm 
3: Machine size(LxWxH):1730x1250x1730mm 
4: Net Weight:290kg 
5: Air Pressure(bar):5-7 
6: Power: 220V/50Hz 110V/60HZ, 60W
7. Max product arc length:1170mm
8. Max printing speed:800Pcs/Hr

Printing samples for this bottles of bucket and water bottle and gallon bottle
