Product Details
Place of Origin: Guangzhou, China
Brand Name: EASY-SHENFA
Certification: CE
Model Number: SF-SHR516
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: USD Negotiable Per Set
Packaging Details: Wooden case
Delivery Time: About 3-4weeks
Payment Terms: TT, LC
Supply Ability: 10sets/Month
Type: |
Screen Printing |
Automatic Grade: |
Automatic |
Condition: |
New |
Usage: |
Tubes Screen Printing |
Product Size: |
Dia 13 - 60mm H 20 - 240mm |
Max Speed: |
80 Pcs / Min |
Air Pressure: |
0.6 - 0.8mpa |
Power: |
AC380V 50/60Hz 37Kw |
Machine Size: |
320 * 280 * 220 Cm |
Type: |
Screen Printing |
Automatic Grade: |
Automatic |
Condition: |
New |
Usage: |
Tubes Screen Printing |
Product Size: |
Dia 13 - 60mm H 20 - 240mm |
Max Speed: |
80 Pcs / Min |
Air Pressure: |
0.6 - 0.8mpa |
Power: |
AC380V 50/60Hz 37Kw |
Machine Size: |
320 * 280 * 220 Cm |

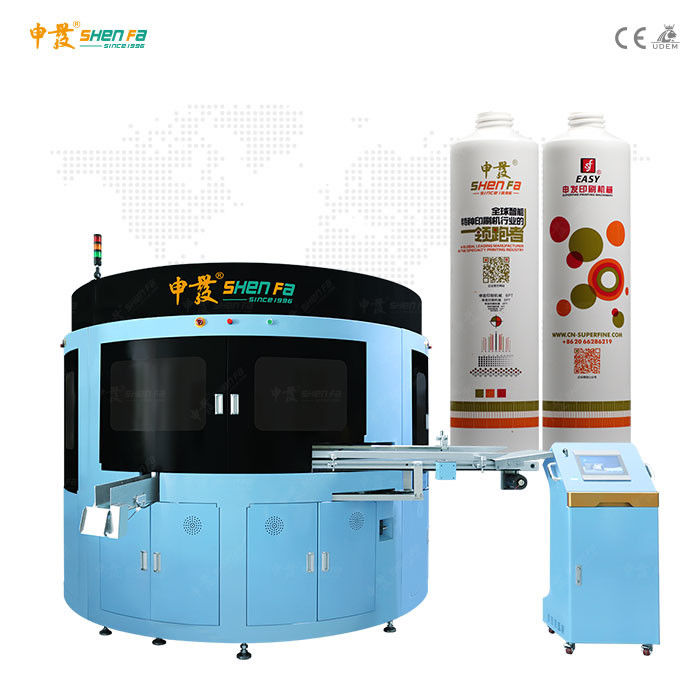

Colors Overprinting Tubes Silk Screen Printing Machine With Vanishing
| Type | Screen Printing Machine |
| Model | SF-SHR516 |
| Product | Tubes |
| Product Size | Dia 13-60mm H20-240mm |
| Max Speed | 80 pcs / min |
| Air Pressure | 0.6-0.8mpa |
| Power | AC380V 50/60Hz 37Kw |
| Machine Size | 320*280*220cm |
Adopt full servo motor design, facilitate operation and with quickly adjustment, reduce the workload for operator. Equipped with unique frequency control device, the maximum printing speed can reach to 80 pieces per minute. With high precision sensor, ensure second printing with high positioning. With independent vacuum suction system, keep each fixture in vacuum. Touch screen adopts the latest wireless technology. It is convenient for operators remotely control the machine, reduce labor intensity and improve the work efficiency.
1. Auto loading system
2. Auto positioning
3. Auto electrostatic precipitator
4. Auto vanishing
5. Auto screen printing
6. Auto UV drying

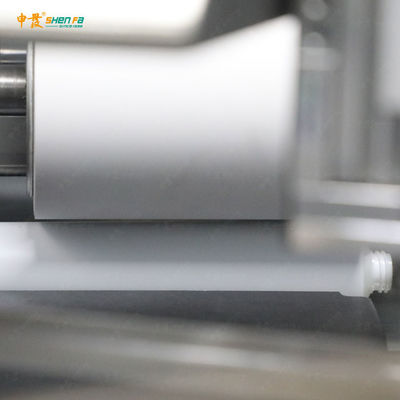

7. Tubes close-up
8. Samples
9. Company Information
