Product Details
Place of Origin: GUANGZHOU,CHINA
Brand Name: SHEN FA,EASY
Certification: ISO9001-2000
Model Number: SF-P2/S
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Packaging Details: Wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 60 Sets/Month
Max. Plate Size: |
100×150mm |
Max. Worktable Area: |
125×200mm |
Max. Printing Area: |
85×130mm |
Printable Colors: |
2 |
Stroke Of Table Shuttle: |
125mm |
Packing Size: |
900*630*1450mm |
Max. Plate Size: |
100×150mm |
Max. Worktable Area: |
125×200mm |
Max. Printing Area: |
85×130mm |
Printable Colors: |
2 |
Stroke Of Table Shuttle: |
125mm |
Packing Size: |
900*630*1450mm |
Application:

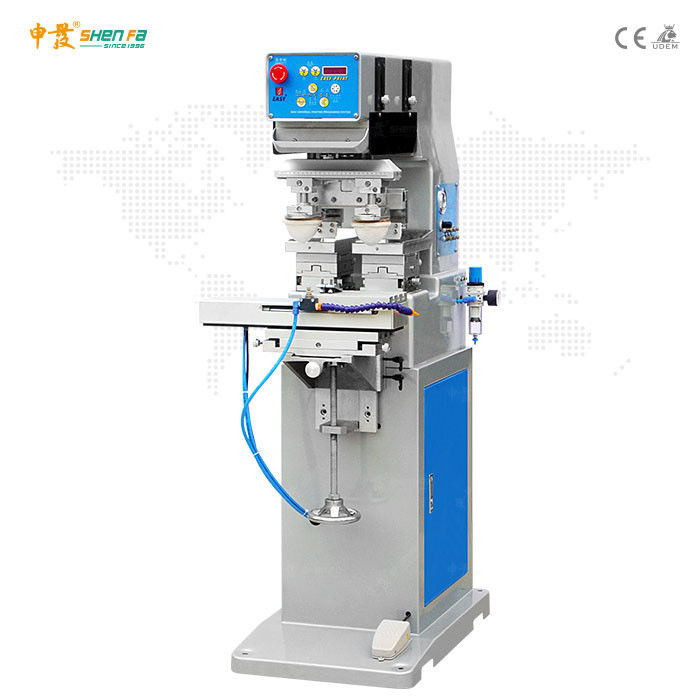

Our company manufacture the P2/S two colors pad printing machine,which is fit for printing the bigger size work-pieces and it can overprint automatically,but it need printing two times finish one printing process.So it is not so efficient but easy to operate,and it need one fixture.For example:only ctric product,cups,buckets,stationery,presents and so on.
Technical Parameters:
| Model | Name | Max.printing size | Speed(Pieces/minute) | Machine size(LxWxH) | Net Weight | Air Pressure(bar) | Power |
| SF-P2/S | Two-Colors Pad Printing Machine | 85X130mm | 25 | 72X46X138cm | 100kg | 5 | 220V/50Hz 50w |
Features:
1.Two-colour pad printer with shuttle ;
2.Each function controlled by microprocessor ;
3.Four-digit auto counter built-in;
4.Coin aluminium structure ensure solidity and durablity;
5.ink roller flooding for easy install/uninstall ;
6.Independent pad up/down stroke and speed asjustment;
7.Auto balanced doctor blade available for efficient ink scraping;
8.Printing speed asjustable to fullfil various requirements;
9."Inking twice, printing once" for better ink covering;
10.Able to sweep forward/backward without lowering pad to avoid ink drying at intervals;
11.One or two colours printable;
12.Two-colour ink tray base adjustable separately for overprint adjustment;
13.Drying with auto air blowing for easy colour registration;
