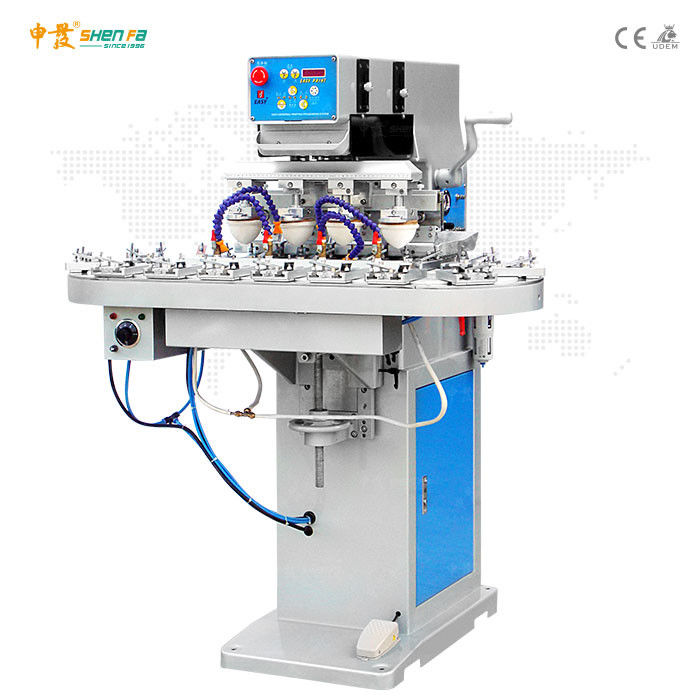

Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles

Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles

Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles
Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles

Large Image :  Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles

Product Details:
Place of Origin: China
Brand Name: EASY
Certification: CE
Model Number: SF-S4/C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD4200/set
Packaging Details: standard exported wooden case
Delivery Time: 5-7working days
Payment Terms: L/C, T/T
Supply Ability: 20sets per month
Detailed Product Description
Cliche Size: 100x150mm Loading Type: Manual Loading
Unloading Type: Auto Unloading Fixture Quantity: 16pcs
High Light:

Flaming Treatment Semi Automatic Pad Printing Machine

,

Plastic Handles Semi Automatic Pad Printing Machine

,

25times/min Flaming Treatment pad printer machine

Four Color Conveyor Pad Printing Machine With Flaming Treatment For Plastic Handles



Model Number: SF-S4/C

Description:
This Pad Printer is suitable pad printing plastic products, such as toyes, pens, golf ball, hosehold etc.





Function

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.



Specifications:
1. Model No: SF-S4/C
2. Operation: Pneumatic
3. Printing Colors: 4
4. Max Plate area: 100*150mm
5. Max printing area: 80*130mm
5. Printing position: 16
6. Max printing speed: 25times/min
7. Wattage: 220V/ 50Hz
8. Air pressure: 6 Bar
9. Machine size: 105*110*135cm
10. Machine weight: 200kg



Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles 0



Flaming Treatment Semi Automatic Pad Printing Machine For Plastic Handles 1
