Product Details
Place of Origin: Guangzhou, China
Brand Name: EASY-SHENFA
Certification: CE
Model Number: SF-ASP/D
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: USD24,500-USD31,000/color
Packaging Details: Wooden case
Delivery Time: About 4-6weeks
Payment Terms: TT, LC, D/A, L/C, D/P, T/T, Western Union
Supply Ability: 50sets/Month
Material: |
Plastic Containers |
Warranty: |
1 Year |
Dryer: |
UV Dryer |
Color: |
1-6colors |
Printing Speed: |
40-50pcs Per Minutes |
Voltage: |
380V |
Usage: |
Tube Printer |
Condition: |
NEW |
After-sales Service Provided: |
Available |
Automatic Grade: |
Available |
Material: |
Plastic Containers |
Warranty: |
1 Year |
Dryer: |
UV Dryer |
Color: |
1-6colors |
Printing Speed: |
40-50pcs Per Minutes |
Voltage: |
380V |
Usage: |
Tube Printer |
Condition: |
NEW |
After-sales Service Provided: |
Available |
Automatic Grade: |
Available |
Automatic 1-3colors Screen Printer For Gallon Bottle with UV drying
Parameters:
Model No.: SF-ASP/D
Product Size : φ(60-150) X H (100-300)mm
Max. Speed : 45pcs / min
Air Pressure : 5 - 7 bar
Machine Size : 3620x1450x1800mm
Power : AC380V 50/60Hz 7Kw
Machine detail:
Loading material equimpment for details
Product stand-up or lie on the delivery belt, with the suitable auto loading system.
Anti-static dust remove,and it can increese the printing quality and adhesion

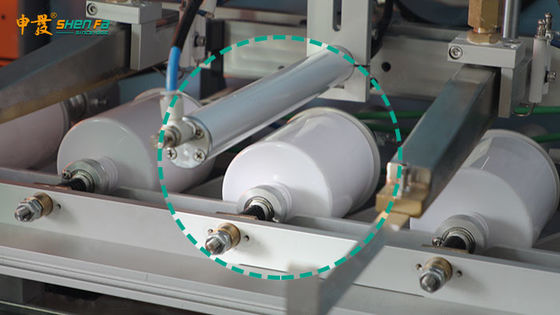

With motor contol product rotary many circle for flaming treatment,it can be install one to two pieces of burner as customer demand.
Screen printing machine,and it can print round and square and oval products
UV drying system, equipped with 5Kw UV lamp power for UV ink drying.
Printing samples.It's high accuracy printing.High adhsion,etc
Automatic three color screen printing bottle sample
Features:
It is specially designed for screen printing for large and round plastic containers, mainly used in chemical industry, food industry and more; The machine adopts the CAM screw linkage structure, with higher efficiency, precise and more flexible and changeable functional integration equipment. ASP/B Screen Train adopts friendly user interface system to ensure easy adjustment and operation, also equipped with mechanical feeder, flaming unit, registration system, no parts no print function, UV curing system and unloading unit.
