AC380V Automatic Screen Printing Machine

Product Details

Place of Origin: Guangzhou, China

Brand Name: EASY-SHENFA

Certification: CE

Model Number: SF-MP412

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Packaging Details: Wooden case

Delivery Time: About 3-4weeks

Payment Terms: TT, LC

Supply Ability: 50sets/Month

Get Best Price
Contact Now
Specifications
High Light:

AC380V Automatic Screen Printing Machine

,

60Hz Automatic Screen Printing Machine

,

lotion bottle Screen Printing Machine

Usage:
Bottle Printer
Condition:
New
Warranty:
1 Year
Automatic Grade:
Automatic
Color & Page:
Multicolor
Plate Type:
Screen Printer
Gross Power:
45kw
Application:
Plastic Bottle/glass Bottle
Applicable Industries:
Manufacturing Plant
Printing Speed:
50pcs/min
Type:
Silk Screen Printing
Dryer:
LED Or UV Dryer
Usage:
Bottle Printer
Condition:
New
Warranty:
1 Year
Automatic Grade:
Automatic
Color & Page:
Multicolor
Plate Type:
Screen Printer
Gross Power:
45kw
Application:
Plastic Bottle/glass Bottle
Applicable Industries:
Manufacturing Plant
Printing Speed:
50pcs/min
Type:
Silk Screen Printing
Dryer:
LED Or UV Dryer
Description

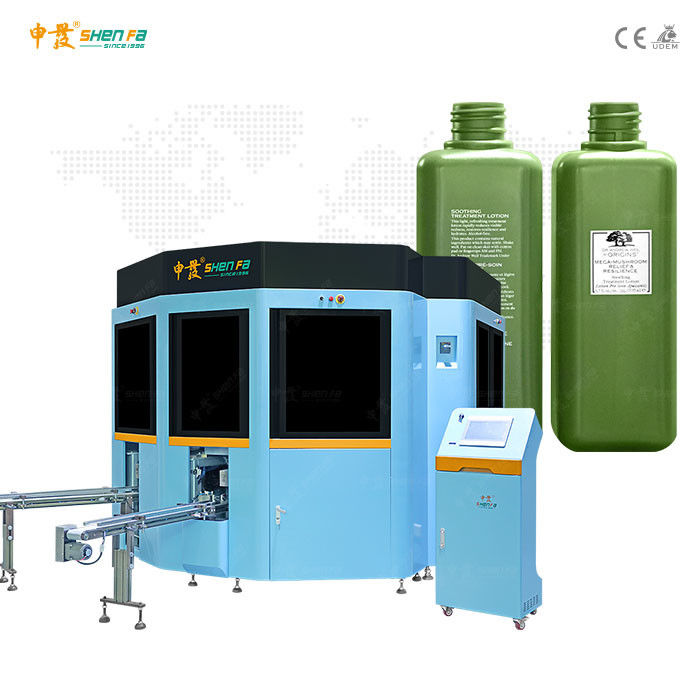

AC380V Automatic Screen Printing Machine

SF-MP412 Servo Four Color Screen Printing For lotion bottle

This machine design philosophy is to do all-purpose screen printing or hot stamping, it can do partial or 360degree screen printing or hot stamping for conical, oval, square, more irregular products etc.



Technical data

Product size (25-100)x(25-100)xH(40-300)mm
Max speed 60pcs/min
Aire pressure 0.6-0.8Mpa
Dimensions 4740x3140x2350mm
Power supply AC380V 50/60Hz 45Kw





Machine detail

With mechanical arm to catch the bottles into fixture, the product stand on the delivery belt. If the bottle cannot stand due to the size small or too high or irregular bottom shape, can add bottle holder on the delivery belt.

AC380V Automatic Screen Printing Machine 0



Electrostatic dust collection device, including dust collect and efflux system.

AC380V Automatic Screen Printing Machine 1



Flaming treament device for PP/PE material

AC380V Automatic Screen Printing Machine 2



Equipped with Visual positioning system, it can refer the neck gap or the bottle thread.

AC380V Automatic Screen Printing Machine 3



Servo screen printing unit

AC380V Automatic Screen Printing Machine 4



With 5.5Kw UV lamp or LED drying system

AC380V Automatic Screen Printing Machine 5

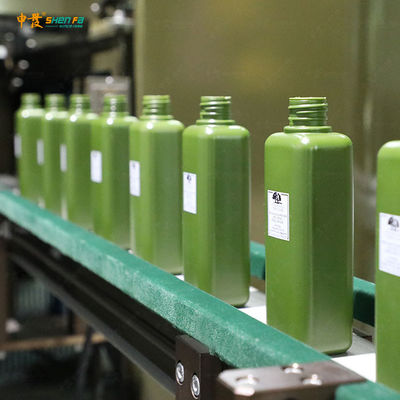

Printed bottle sample

AC380V Automatic Screen Printing Machine 6





AC380V Automatic Screen Printing Machine 7
