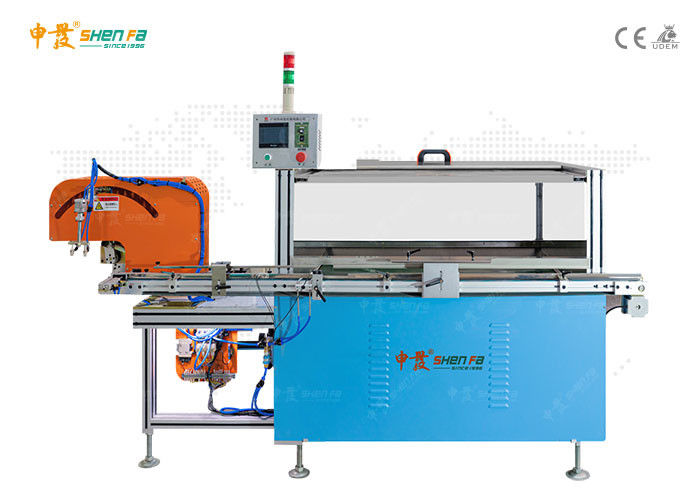

70 Pcs/Min Fully Automatic Tube Loading machine System

70 Pcs/Min Fully Automatic Tube Loading machine System

70 Pcs/Min Fully Automatic Tube Loading machine System
70 Pcs/Min Fully Automatic Tube Loading machine System 70 Pcs/Min Fully Automatic Tube Loading machine System

Large Image :  70 Pcs/Min Fully Automatic Tube Loading machine System

Product Details:
Place of Origin: China
Brand Name: EASY
Certification: CE
Model Number: SF-PG2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD Negotiable Per Set
Packaging Details: Ply Wooden Case
Delivery Time: 10 Work Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10 Sets Per Month
Detailed Product Description
Type: Loading System Automatic Grade: Automatic
Condition: New Usage: Tubes Loading System
Cliche Size: Dia 16 - 60 Mm Max Speed: 70 Pcs / Min
Air Pressure: 0.6 - 0.8 Mpa Power: AC220V 50Hz 2Kw
Machine Size: 215 * 115 * 155 Cm
High Light:

70 Pcs/Min Fully Automatic Tube Loading Machine

,

2Kw Tube Loading Machine

,

70 Pcs/Min Tube Loading System

Fully Automatic Tube Loading System



Type Loading System
Model  SF-PG2
Product Tubes
Cliche Size Dia16-60mm
Max Speed 70pcs / min
Air Pressure  0.6-0.8mpa
Power  AC220V 50Hz 2Kw
Machine Size  215*115*155cm



Liberation for traditional labor of uploading the products one by one manually.

For round piping products can be put into the unscrambler bucket in batches.

The unscrambler channel with all purposes guide rail, can be adjusted flexibly according to different size.

The machine unloading by servo, can be set uploading travel distance accurately according to products sizes.

When the sensor checks the unexpected products, it will blow back to the unscrambler bucket for unloading again.

Equips with 180 degree rotating cylinder, sensors will do inspection accurately before loading onto conveyor, so as to assure products all in corret direction.



1. Machine Pictures



70 Pcs/Min Fully Automatic Tube Loading machine System 0



70 Pcs/Min Fully Automatic Tube Loading machine System 1



2. Company Information



70 Pcs/Min Fully Automatic Tube Loading machine System 2
