Automatic Servo Screen Printing Machine for Flat Surface Packaging

Product Details

Place of Origin: Guangdong, China

Brand Name: EASY

Certification: CE Certification

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $24,000-26,000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          automatic servo screen printing machine, flat surface packaging printing machine, industrial screen printing machine with warranty


Plate Type:	Screen Printer	Automatic Grade:	Automatic
Printing Colors:	Two Colors	Voltage:	380V
Dimensions:	145145200cm	Weight:	1400 KG
Max Print Area:	80*50mm	Printing Speed:	45 Pcs/min
Model:	SF-PSR18	Round Size:	(16-80)(16-80)H(10-40)
Air Pressure:	0.6-0.8mpa	Power:	AC380V 50/60Hz 7Kw
Core Components:	Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox	Max Speed:	45 Pcs/min
Type:	Servo

Plate Type:	Screen Printer
Automatic Grade:	Automatic
Printing Colors:	Two Colors
Voltage:	380V
Dimensions:	145145200cm
Weight:	1400 KG
Max Print Area:	80*50mm
Printing Speed:	45 Pcs/min
Model:	SF-PSR18
Round Size:	(16-80)(16-80)H(10-40)
Air Pressure:	0.6-0.8mpa
Power:	AC380V 50/60Hz 7Kw
Core Components:	Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Max Speed:	45 Pcs/min
Type:	Servo

Description

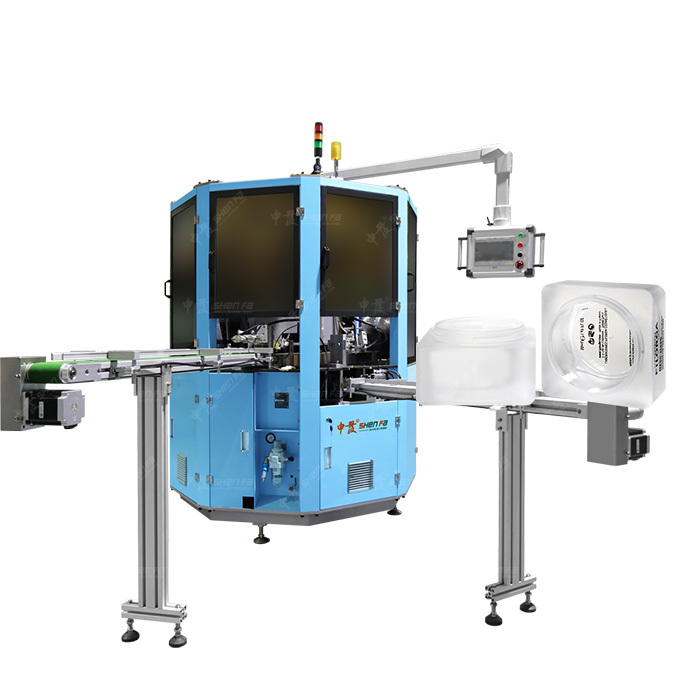

Automatic Servo Screen Printing Machine for Flat Surface Packaging

Flat Surface Packaging Servo Screen Printing Machine

Product Specifications

Attribute	Value
Plate Type	Screen Printer
Condition	New
Usage	Barrels Printer
Automatic Grade	Automatic
Color & Page	Two colors
Voltage	380V
Dimensions (L×W×H)	145×145×200cm
Weight	1400 KG
Max. Print Area	80×50mm
Warranty	1 Year
Application	Caps Printer
Type	Servo
Printing Speed	45 pcs/min
Core Components	Bearing, motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Applicable Industries	Printing Shops, Printing Industry

Technical Details

Model	SF-PSR18
Product Size (mm)	Round (16-80) × (16-80) × H (10-40)
Max. Speed	45 pcs/min
Air Pressure	0.6-0.8mpa
Power	AC380V 50/60Hz 7Kw

Key Features

High-accuracy servo screen printing machine
Prints 1-2 colors simultaneously
Ideal for round bottles, tubes, and various packaging products
Suitable for cosmetics, daily use items, food, medical, rubber, plastic, and glass products
Automatic operation with precision control
Includes machinery test report and video outgoing-inspection

Product Images

Packaging & Delivery

The machine is securely packed in wooden cases for safe transportation.

Manufacturer Information

Shen Fa (EASY®) company was founded in 1996 with a 50,000 sqm factory located in Huadu district of Guangzhou City. We specialize in fully-auto and semi-auto screen printing machines, hot-stamping machines, pad printing machines and related mechanical products.

Our facilities include research and development center, CNC processing machines, assembling and commissioning departments, sales and after-sale service departments. We hold AQSIQ and CE certifications and have obtained 9 patents for our auto 3 and 6 colors screen printing machines.

Services

Pre-sale Service: Budget planning, cost-effective solutions, sample testing.

In-sale Service: Detailed design, technological information, production schedule, training courses.

After-sale Service: Free training, technical support, on-site guidance when needed, spare parts availability.

Frequently Asked Questions

Q: How can I get a price quote for this machine?

A: Please provide the following information for an accurate quote:

Number of colors required
Your product dimensions (diameter, height)
Printing size requirements
Desired production capacity

Q: What are your MOQ, delivery time and payment terms?

MOQ: 1 set
Delivery Time: 1 week for stock machines, 1 month for custom orders
Payment Terms: 30% deposit, 70% before shipment
