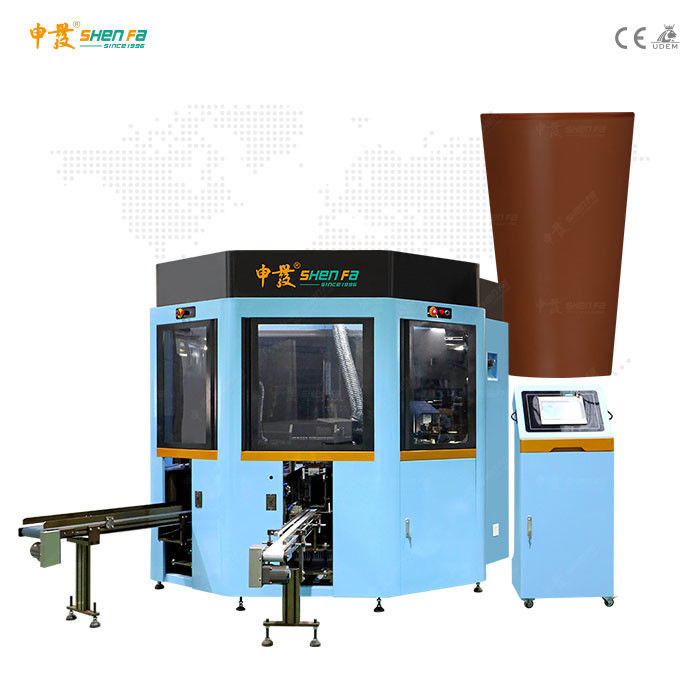

35kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup

35kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup

35kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup
35kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup 35kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup 35kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup

Large Image :  35kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup

Product Details:
Place of Origin: Guangzhou, China
Brand Name: EASY-SHENFA
Certification: CE
Model Number: SF-MP310
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: Wooden case
Delivery Time: About 3-4weeks
Payment Terms: TT, LC
Supply Ability: 10sets/Month
Detailed Product Description
Product Size: φ(25-100)X H(40-300)mm Max.speed: 60 Pcs/min
Air Pressure: 5-7bar Dimension: L 290 X W 260 X H 235cm
Power: AC380V 50/60Hz 35kw Warranty: 1 Year
High Light:

35kw Cup Screen Printing Machine

,

35kw Irregular Shape Auto Silk Screen Printing Machine

,

Cone Cup Auto Silk Screen Printing Machine

Full Servo Irregular Shape Silk Screen Printing Machine For Cone Cup





Application:



This machine design philosophy is to do all-purpose screen printing or not stamping, it can do partial or 360 degree screen printing or hot stamping for conical, oval, square, more irregular products etc.



Technical Parameters:



Model Name Max.printing size Speed(Pieces/minute) Machine size(LxWxH) Net Weight Air Pressure(bar) Power
SF-MP310

Automatic

Screen Printing Machine

φ(25-100)xH (40X300)cm 60 290X260X235cm 3000kg 5-7 AC380V 50/60Hz 35kw



Features:



1.All jigs installed with servo motors for rotation(no need gears ,easy and fast product changeover);

2.3 color print in 1 process;

3.Quick and easy change over from one product to another ,all parameters automatic setting simply in touch screen;

4.Indexing table system with best accuracy;

5.Mesh frames driven by servo motors;

6.No product no printing function.



The machine details:



35kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup 035kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup 135kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup 235kw Irregular Shape Auto Silk Screen Printing Machine For Cone Cup 3
